Motors with cast iron or steel plate welding frames can be produced according to customers’ special dimensions requirements.

Protection: IP23

Cooling: IC01 (or IC81W)

Mounting: B3, B35, V1

F/B

S1 duty

Power range: 45KW~355KW

Frame range: H250~H315

IP23 motors can be used in dry and clean indoor working site. Besides, the same power can be put into smaller frame that can decrease the use space of the associated equipment.

Motors can be applied to all kinds of machines, such as machine tool, air compressor, pump, ventilation, reduction gear, transmission belt, mining equipment, metallic equipment. However, motors can’t be used with inflammable, explosive and corrosive working site.

Please check with KINCHI engineers

環(huán)境 適臺IP55防護等級的安裝 低于或等于海拔i1000米 環(huán)境溫度在-15℃-40℃ 相對濕度

Operating Environment Suitable for IP55 installations Altitude not exceed 1000m Ambient temperature -15℃ - 40℃ Relative humidity

溫度 Temperature	相對濕度 Relative Humidity
-15℃ ≤ T ≤ 20℃	100%
20℃ ≤ T ≤ 30℃	95%
30℃ ≤ T ≤ 40℃	55%

如果環(huán)境溫度和海拔高度不同，電機功率要考慮以下系數(shù)作選型
Motor Powers will be considered according to following data,if the ambient temperature and altitude are different

	<30℃	30℃~40℃	45℃	50℃	55℃	60℃
1000m	1.07	1.00	0.96	0.92	0.87	0.82
1500m	1.04	0.97	0.93	0.89	0.84	0.79
2000m	1.00	0.94	0.90	0.86	0.82	0.77
2500m	0.96	0.90	0.86	0.83	0.78	0.74
3000m	0.92	0.86	0.82	0.79	0.75	0.70
3500m	0.88	0.82	0.79	0.75	0.71	0.67
4000m	0.82	0.77	0.74	0.71	0.67	0.63

● IE3-ODP Series H250-315 400V IP23 data

Motor Type	Rated Power	Current	Rated Speed	Efficiency	Power Factor	Locked Current	Locked Torque	Maximum Torque	Moment of inertia	Weight
						Rated Current	Rated Torque	Rated Torque
	kW	A	r/min	η%	cosΦ	Locked Current	Locked Torque	Maximum Torque	J kgm2	kg
						Rated Current	Rated Torque	Rated Torque
IE3-ODP250S-2	90	152	2960	95	0.9	7.8	2.4	3.0	0.67	557
IE3-ODP250M-2	110	185	2965	95.2	0.9	7.8	2.4	3.0	0.77	593
IE3-ODP250S-4	75	129	1475	95.0	0.88	7.2	2.4	3.0	1.33	574
IE3-ODP250M-4	90	153	1475	95.2	0.89	7.5	2.4	3.0	1.52	601
IE3-ODP250S-6	45	83	985	93.7	0.84	6.5	2.2	2.8	0.894	523
IE3-ODP250M-6	55	100	985	94.1	0.84	6.5	2.2	2.8	0.954	540
IE3-ODP280M-2	132	227	2960	95.4	0.88	7.5	2.2	3.0	0.893	775
IE3-ODP280S-4	110	194	1475	95.4	0.86	7.4	2.6	3.2	3.212	810
IE3-ODP280M-4	132	232	1470	95.6	0.86	7.0	2.4	3.0	3.822	817
IE3-ODP280S-6	75	140	985	94.6	0.82	6.0	2.0	2.5	1.853	750
IE3-ODP280M-6	90	163	985	94.9	0.84	6.0	2.0	2.5	2.285	720
IE3-ODP315S-2(A)	160	271	2970	95.6	0.89	6.5	1.6	2.8	1.751	1042
IE3-ODP315M-2(A)	200	339	2965	95.8	0.89	7.2	1.6	2.8	1.935	1070
IE3-ODP315MX-2(A)	225	381	2965	95.8	0.89	7.2	1.6	2.8	1.935	1070
IE3-ODP315LA-2(A)	250	423	2965	95.8	0.89	7.2	1.6	2.8	2.177	1135
IE3-ODP315LB-2(A)	280	469	2970	95.8	0.9	7.0	1.8	2.8	2.503	1184
IE3-ODP315LX-2(A)	315	527	2970	95.8	0.9	7.0	1.9	3.0	2.629	1280
IE3-ODP315LY-2(B)	355	588	2965	95.8	0.91	7.0	1.5	2.1	2.997	1386
IE3-ODP315S-4(A)	160	277	1480	95.8	0.87	6.2	1.7	2.5	3.744	1068
IE3-ODP315M-4(A)	200	346	1480	96	0.87	6.2	1.7	2.5	4.481	1164
IE3-ODP315MX-4(A)	225	389	1480	96	0.87	6.2	1.7	2.5	4.481	1164
IE3-ODP315LA-4(A)	250	427	1480	96	0.88	6.2	1.7	2.5	4.861	1265
IE3-ODP315LB-4(A)	280	484	1480	96	0.87	6.0	1.6	2.4	5.126	1305
IE3-ODP315LX-4(B)	315	538	1480	96	0.88	6.5	1.8	2.6	6.09	1465
IE3-ODP315LY-4(B)	355	614	1480	96	0.87	7.0	1.9	2.8	6.211	1598
IE3-ODP315S-6(A)	110	204	985	95.1	0.82	5.5	1.6	2.4	3.961	1025
IE3-ODP315M-6(A)	132	244	985	95.4	0.82	5.5	1.7	2.4	4.804	1065
IE3-ODP315MX-6(A)	160	298	985	95.6	0.81	6.0	1.8	2.5	5.187	1183
IE3-ODP315LA-6(A)	180	331	985	95.6	0.82	6.0	1.8	2.5	5.727	1227
IE3-ODP315LB-6(A)	200	363	985	95.8	0.83	6.0	1.8	2.5	6.309	1265
IE3-ODP315LX-6(B)	225	408	985	95.8	0.83	6.0	1.8	2.5	7.022	1435
IE3-ODP315LY-6(B)	250	454	985	95.8	0.83	6.0	1.9	2.5	7.888	1471
IE3-ODP315LZB-6(B)	280	508	985	95.8	0.83	6.0	1.9	2.5	8.654	1562

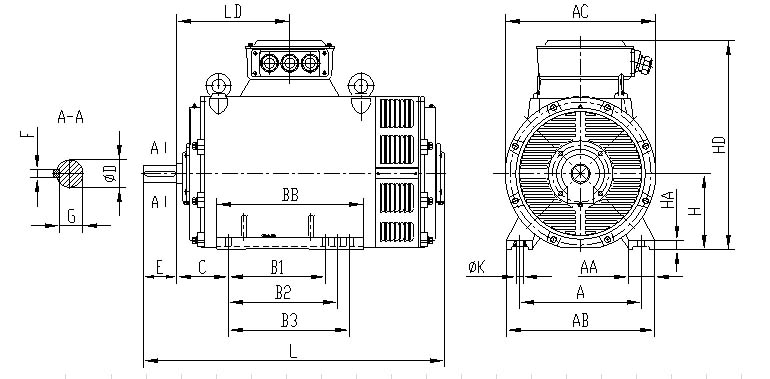

●IE3-ODP Series H250~315 IP23 B3

● B3
Frame Size	Pole	Mounting Dimensions (mm)											Outline Dimensions (mm)
		A	B1	B2	B3	C	D	E	F	G	H	K	AB	AC	HD	BB	LD	HA	AA	L
250S,M	2	406	311	349	/	168	65	140	18	58	250	24	490	520	730	425	332	40	85	960
	4,6	406	311	349	/	168	75	140	20	67.5	250	24	490	520	730	425	332	40	85	960
280S,M	2	457	368	419	/	190	65	140	18	58	280	24	550	585	785	490	370	45	95	1056
	4,6	457	368	419	/	190	80	170	22	71	280	24	550	585	785	490	370	45	95	1086
315(A)	2	508	406	457	508	216	70	140	20	62.5	315	28	620	665	875	615	473	50	112	1260
	4,6	508	406	457	508	216	90	170	25	81	315	28	620	665	875	615	473	50	112	1295
315(B)	2	508	457	508	560	216	70	140	22	71	315	28	620	665	875	800	473	50	112	1455
	4,6	508	457	508	560	216	90	170	25	81	315	28	620	665	875	800	473	50	112	1490

●IE3-ODP Series H250~315 IP23 V1

● V1
Frame Size	Pole	Mounting Dimensions (mm)											Outline Dimensions (mm)
		D	E	F	G	H	M	N	P	R	S	T	AC	HD	LA	LD	L
250S,M	2	65	140	18	58	250	600	550	660	0	8-24	6	665	725	22	332	960
	4,6	75	140	20	67.5	250	600	550	660	0	8-24	6	665	725	22	332	960
280S,M	2	65	140	18	58	280	600	550	660	0	8-24	6	740	775	22	370	1056
	4,6	80	170	22	71	280	600	550	660	0	8-24	6	740	775	22	370	1086
315(A)	2	70	140	20	62.5	315	740	680	800	0	8-24	6	900	875	25	473	1260
	4,6	90	170	25	81	315	740	680	800	0	8-24	6	900	875	25	473	1295
315(B)	2	70	140	22	71	315	740	680	800	0	8-24	6	900	875	25	473	1455
	4,6	90	170	25	81	315	740	680	800	0	8-24	6	900	875	25	473	1490
R=distance from flange to shaft shoulder

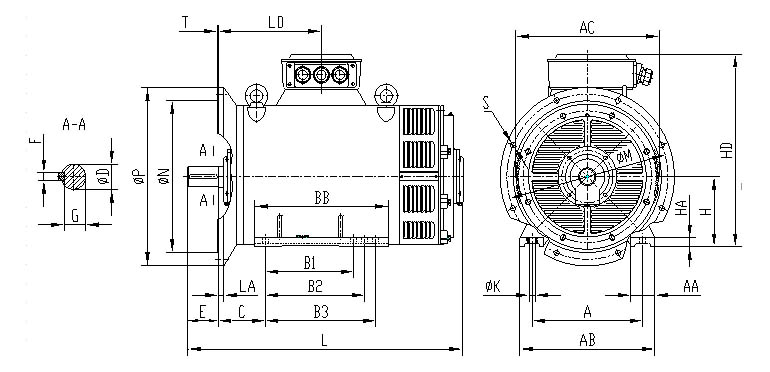

●IE3-ODP Series H250~315 IP23 B35

Frame Size	Pole	Mounting Dimensions (mm)
		A	B1	B2	B3	C	D	E	F	G	H	K	M	N	P	R	S	T
250S,M	2	406	311	349	/	168	65	140	18	58	250	24	600	550	660	0	8-24	6
	4,6	406	311	349	/	168	75	140	20	67.5	250	24	600	550	660	0	8-24	6
280S,M	2	457	368	419	/	190	65	140	18	58	280	24	600	550	660	0	8-24	6
	4,6	457	368	419	/	190	80	170	22	71	280	24	600	550	660	0	8-24	6
315(A)	2	508	406	457	508	216	70	140	20	62.5	315	28	740	680	800	0	8-24	6
	4,6	508	406	457	508	216	90	170	25	81	315	28	740	680	800	0	8-24	6
315(B)	2	508	457	508	560	216	70	140	22	71	315	28	740	680	800	0	8-24	6
	4,6	508	457	508	560	216	90	170	25	81	315	28	740	680	800	0	8-24	6

Frame Size	Pole	Outline Dimensions (mm)
		AB		AC		HD		BB		LD		HA		AA		L
250S,M	2	490		520		730		425		332		40		85		960
	4,6	490		520		730		425		332		40		85		960
280S,M	2	550		585		785		490		370		45		95		1056
	4,6	550		585		785		490		370		45		95		1086
315(A)	2	620		665		875		615		473		50		112		1260
	4,6	620		665		875		615		473		50		112		1295
315(B)	2	620		665		875		800		473		50		112		1455
	4,6	620		665		875		800		473		50		112		1490
R=distance from flange to shaft shoulder
